Diesel City Bus Product Detailed Specification:
| Model | 6905AY |
| Basic Parameter |
| Overall Size | 8995*2500*3395,3280,3440mm |
| Seats | 39+1 |
| Curb Weight | 9350kg |
| G.V.Weight | 13000kg |
| Max Speed | 100km/h |
| Tyre | 215/75R17.5,6pcs |
| Chassis Specification |
| F/R Overhang | F/R 1905/2790mm |
| Spring No. | -/-,8/11,7/10,3/4 |
| Wheel base | 4300mm |
| Wheel Track | 2030,2070mm/1870,1885mm |
| Angle of Approaching &Leaving | 19/12° |
| Max.Climbing Gradient(%) | 11/9° |
| Engine Data |
| Engine Model | YCS06270-62,WP7.270E61A |
| Rated/Max Power(kw) | 199/270kW |
| Rated/Max.Torque/roll(N.m) | 1000N.m |
| Displacement(L) | 6.23L |
| Partial configuration |
| A/C | Built-in Type, 12000kcal/h |
| Body Structure | Fully Stamping type |
| Floor surface | Standard Vinyl floor covering |
| Windows | Fully enclosed tempered adhesive side window
(with 4pcs emergency glass breaker) |
| Door | Pneumatic swing out passenger door |
| Bus PC | Y |
| Full around wall anti-collision strip | Y |
| Four channel monitoring system | Y |
| On Board USB Hole | Y |
| Manual LCD display | 18.5" |
| Panoramic sunroof | Y |
| Interior atmosphere lamp | Y |
Diesel City Bus 6905AY Products Features:
The domineering shape, comfortable space and safety are another evolution of the Jieguan family, which is the
Jieguan 3T. At the same time, Jieguan 3T has made improvements in body structure, safety configuration, convenient
maintenance and fuel saving performance, and has met the diversified needs of the China Brazil market with its
unique cost performance advantages.

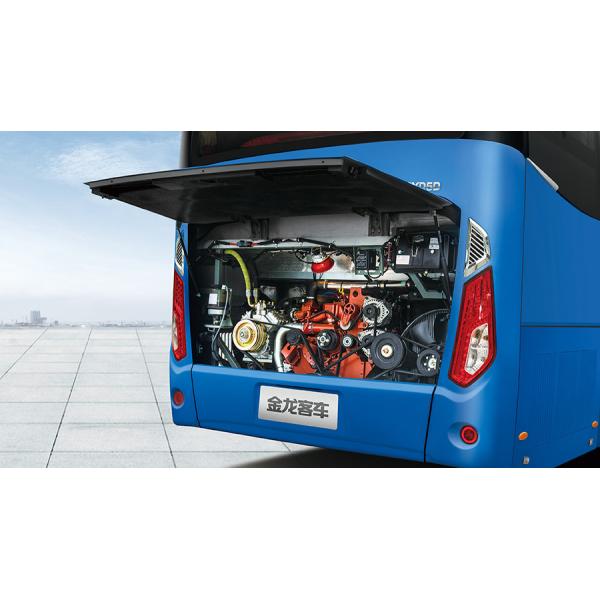

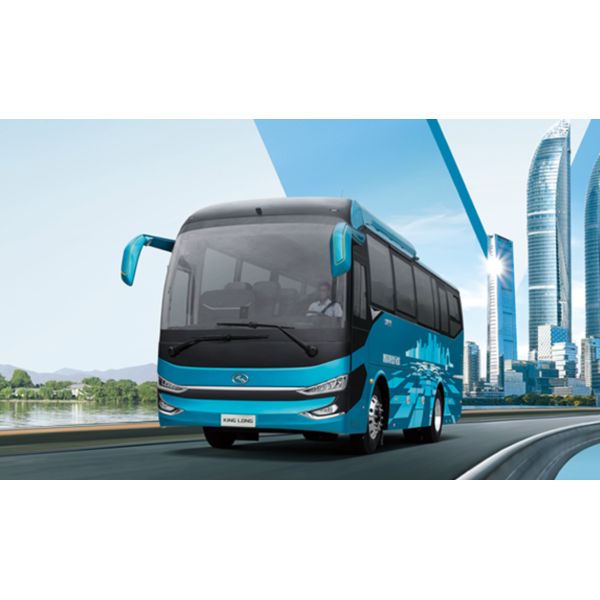

Products HD pictures:
Packing and Shipping:
FQA:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
